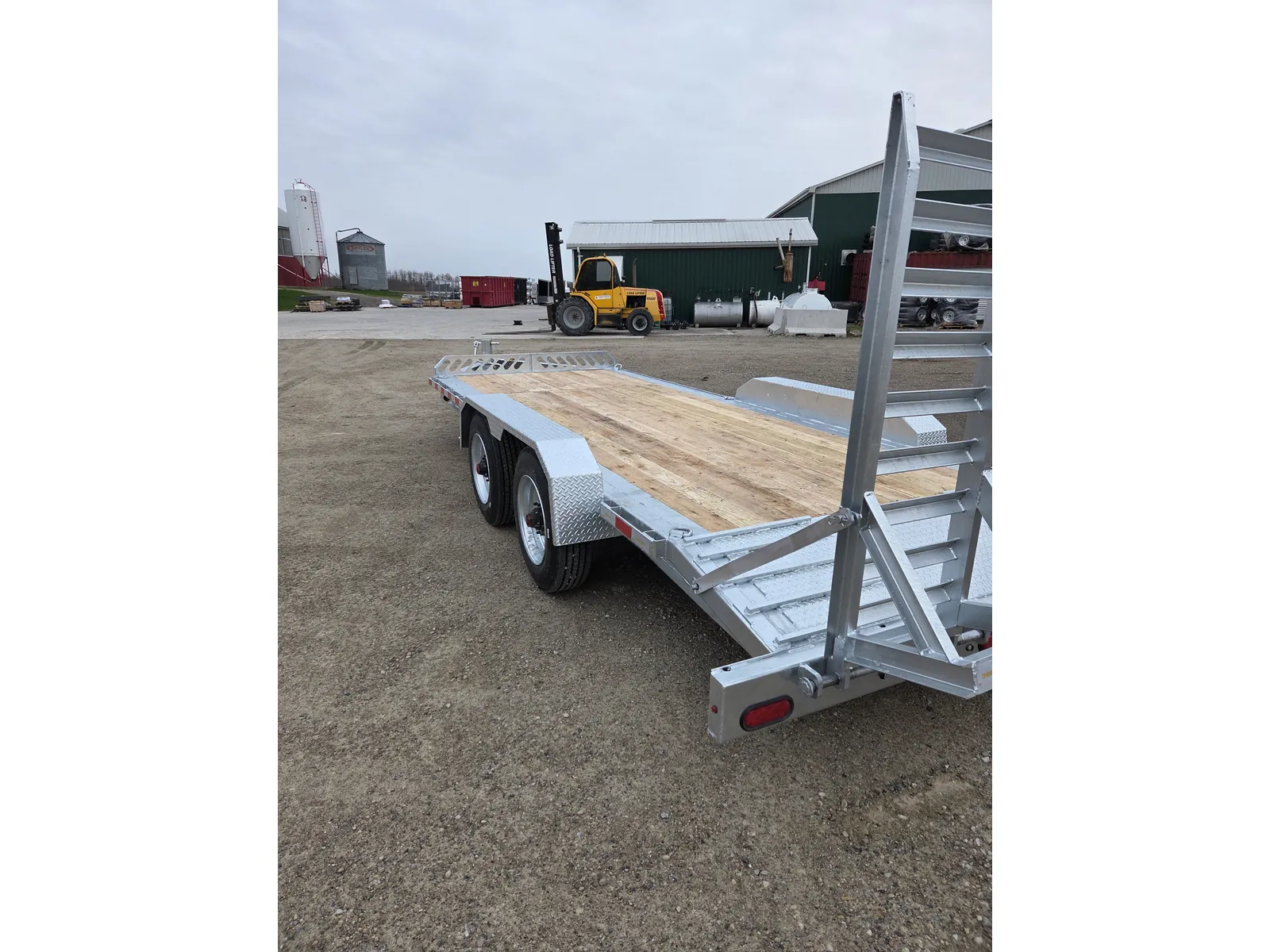

Galvanized XHD tandem equipment float with ramps up

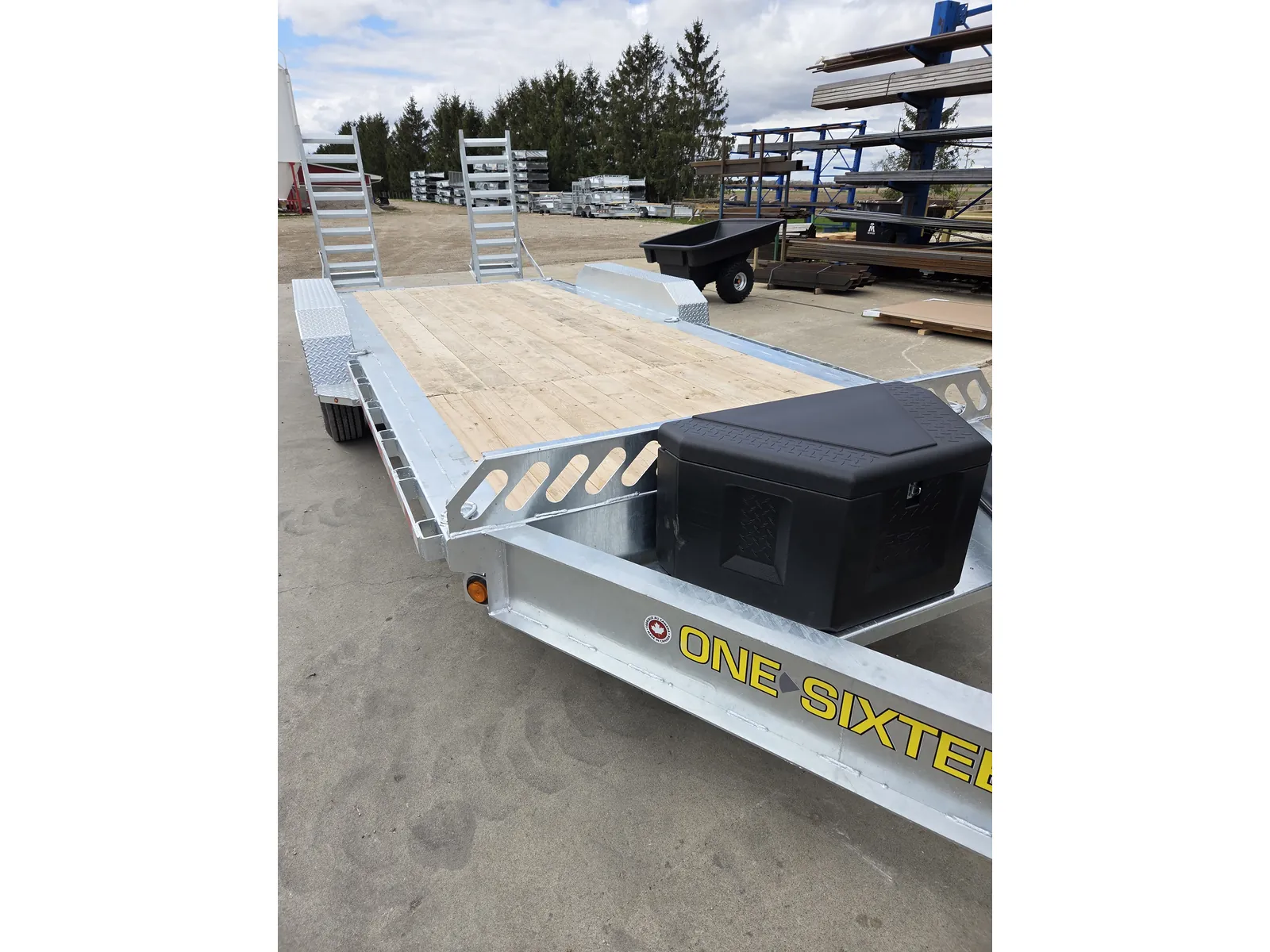

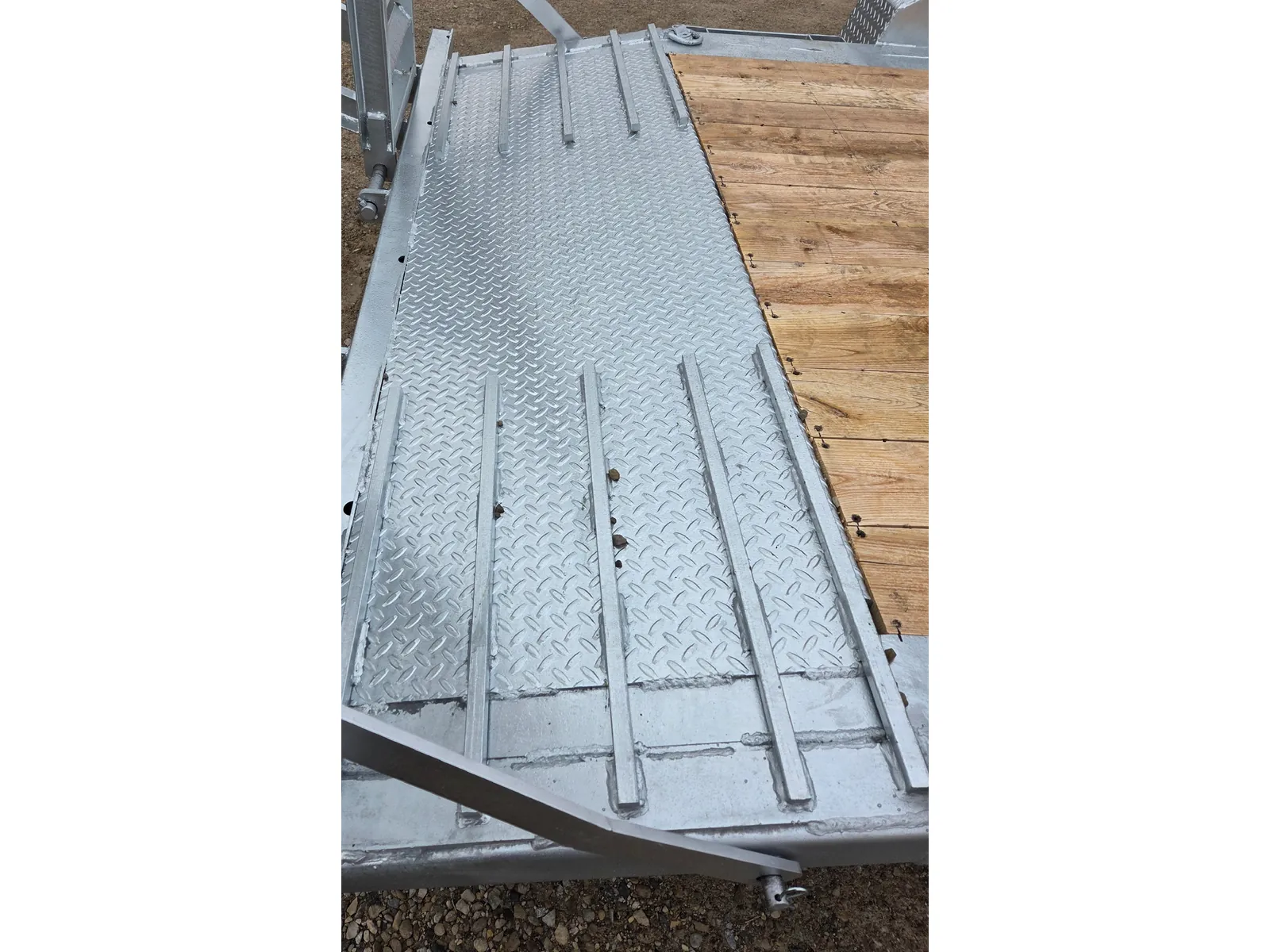

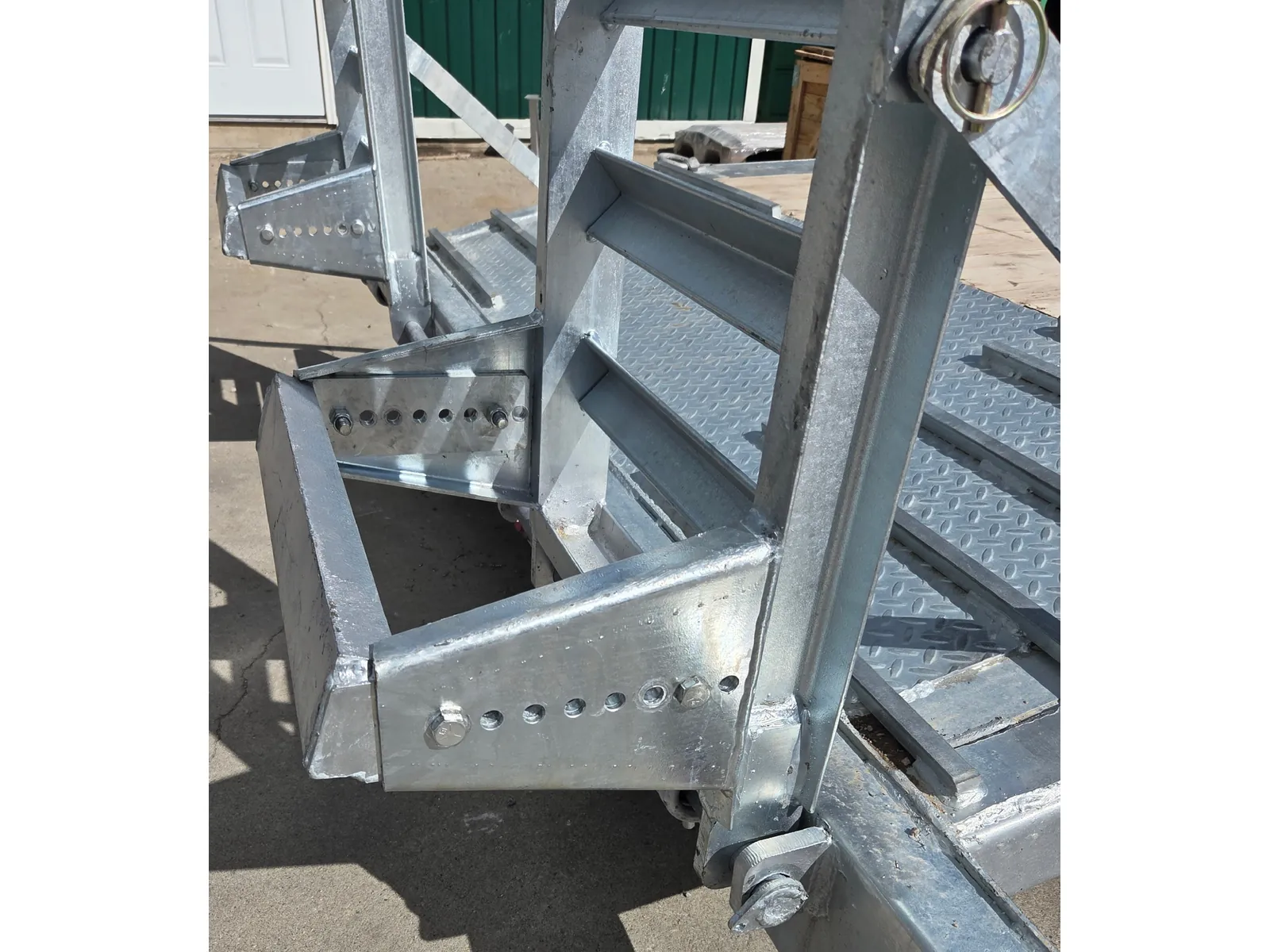

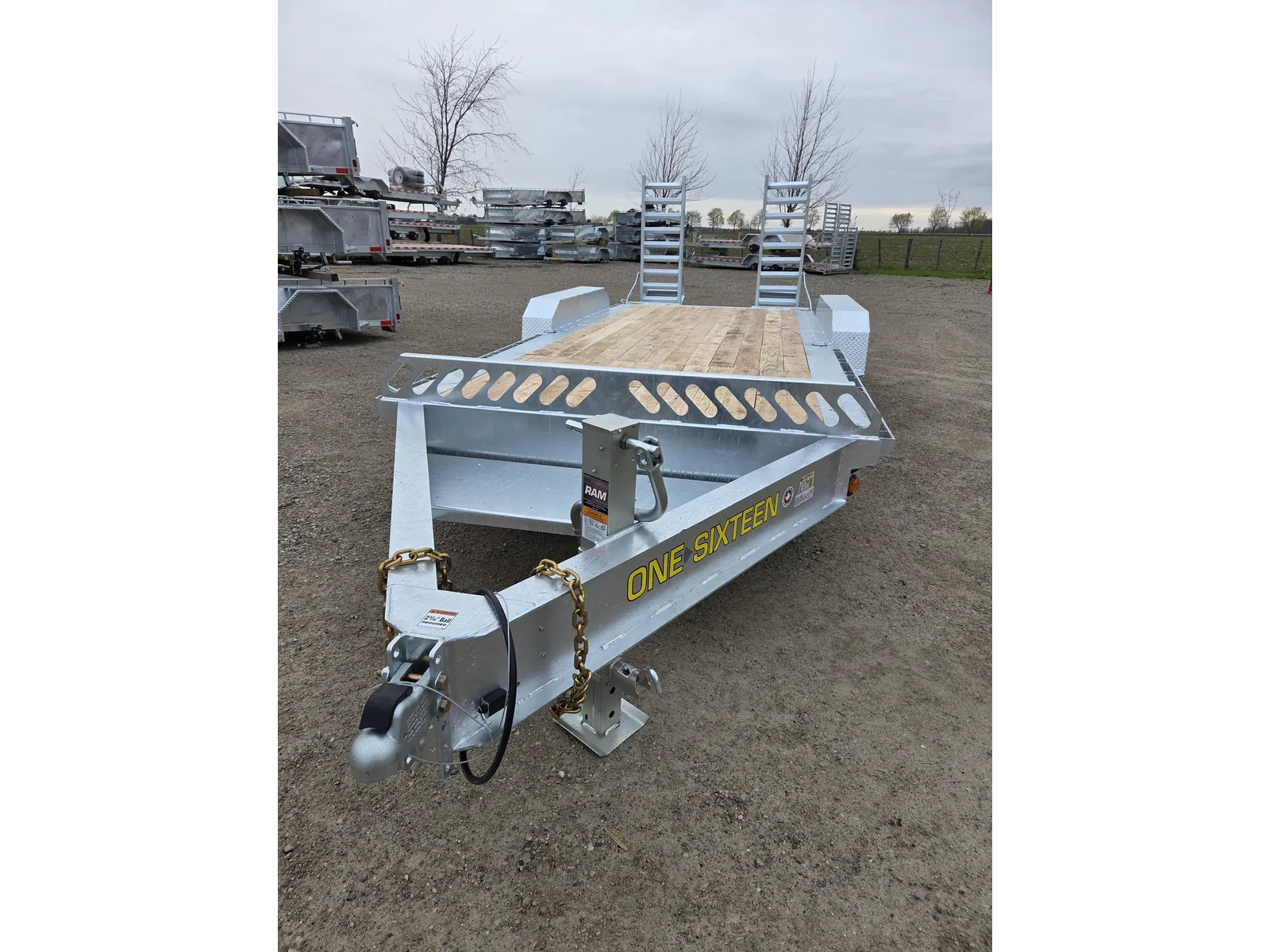

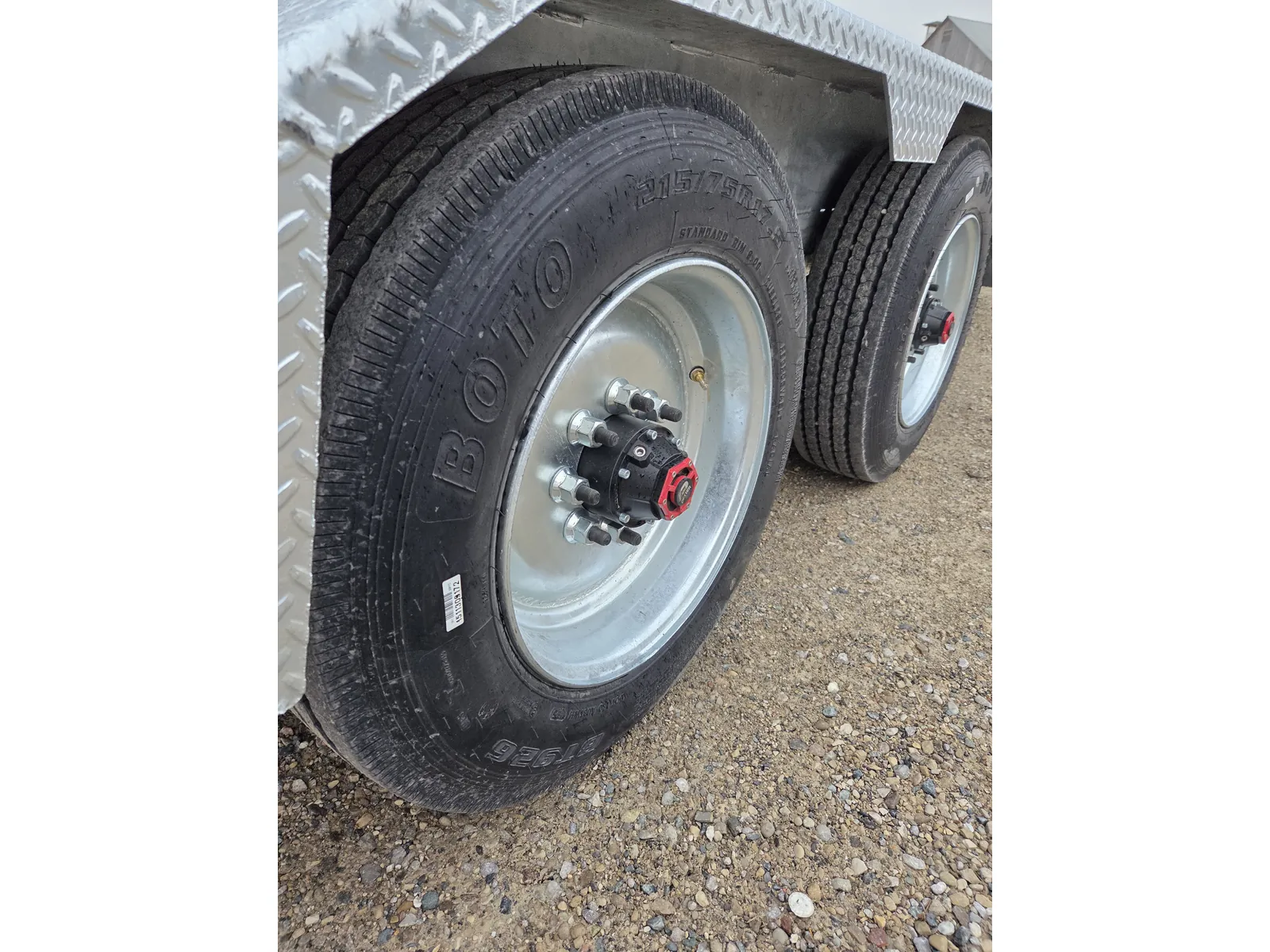

XHD float tongue, coupler and the ONE SIXTEEN wordmarkHardwood deck with front toolboxSuper single solid disc wheel on a torsion axle under an XHD fenderChecker plate beavertail with traction cleats and rampsAdjustable ramp mount at the rear of the float
XHD Tandem Equipment Float

XHD Tandem Equipment Float

Extra heavy duty galvanized equipment float on an engineered 10 inch I beam frame, built in Linwood Ontario. The 10 ton runs two 10K Torflex axles and the 12 ton two 12K torsion axles, both on super single solid disc wheels, with 14 to 20 foot flat decks plus a 2 foot hardwood beavertail. A 30 year galvanized finish over a hardwood floor, 3/16 inch XHD fenders and six HD D-rings.

Standard Features

  • Engineered 10" I Beam Frame
  • 4 x 3" Channel 34" Wide x 60" Long Ramps with 1/4" Angle Traction Bars (Pair)
  • Dexter Torsion Axles 10K-12K with Super Single Solid Disc Wheels
  • 12K Jack
  • 21K 2-5/16" Adjustable Coupler or 3" Eye with 4 Bolts, with Safety Chains
  • Hardwood Floor
  • Bolt-on Stake Pocket Spare Tire Mount
  • Stake Pockets & Rub Rail
  • 30 Year+ Galvanized Finish
  • 1pc Sealed Harness and LED Lights
  • 6 HD D-Rings: 2 Front, 2 Middle, 2 Rear
  • 3/16" XHD Fenders
  • 2' Hardwood Beavertail
  • XHD 10" Engineered I Beam Frame with 2 - 10K Torflex Axles or 2 - 12K Torsion Axles

Options

Part #Name
Optional Axles & Tires
EQ-SPARE-17-5-20KSpare Tire 215/75R17.5 (20K Tandem)
EQ-SPARE-17-5-24KSpare Tire 235/75R17.5 (24K Tandem)
Optional Features
EQ-ADJ-RAMPS-17Adjustable 17" Ramps
EQ-BT-CHECKER2' Beavertail in 3/16" Checker Plate
EQ-TRACTION-CLEATSTraction Cleats (3/4" Solid Bar)
EQ-ALUM-TOOLBOXAluminum Toolbox (Equipment Hauler)
EQ-DEEZEE-TOOLBOXDEE ZEE Plastic Toolbox (Equipment Hauler)
EQ-DRING-STAKEStake Pocket D-Ring, Moveable (Equipment Hauler)
EQ-DRING-WELDExtra Weld-On D-Ring, Each (Equipment Hauler)
EQ-HYD-JACKHydraulic Jack (Equipment Hauler)
EQ-25K-2SPD-JACK25K 2-Speed Jack (Equipment Hauler)
EQ-HARDWOOD-RAMPSHardwood on Ramps (Equipment Hauler)
EQ-EXPMETAL-RAMPSHD Expanded Metal on Ramps (Equipment Hauler)

Available Options

14' + 2' Beavertail — 81" Wide, 10 Ton (20K)
SKU: 6040-BT8116-22K
Login for pricing
16' + 2' Beavertail — 81" Wide, 10 Ton (20K)
SKU: 6041-BT8118-22K
Login for pricing
18' + 2' Beavertail — 81" Wide, 10 Ton (20K)
SKU: 6042-BT8120-22K
Login for pricing
20' + 2' Beavertail — 81" Wide, 10 Ton (20K)
SKU: 6043-BT8122-22K
Login for pricing
14' + 2' Beavertail — 80" Wide, 12 Ton (24K)
SKU: 6044-BT8016-26.4K
Login for pricing
16' + 2' Beavertail — 80" Wide, 12 Ton (24K)
SKU: 6045-BT8018-26.4K
Login for pricing
18' + 2' Beavertail — 80" Wide, 12 Ton (24K)
SKU: 6046-BT8020-26.4K
Login for pricing
20' + 2' Beavertail — 80" Wide, 12 Ton (24K)
SKU: 6047-BT8022-26.4K
Login for pricing
