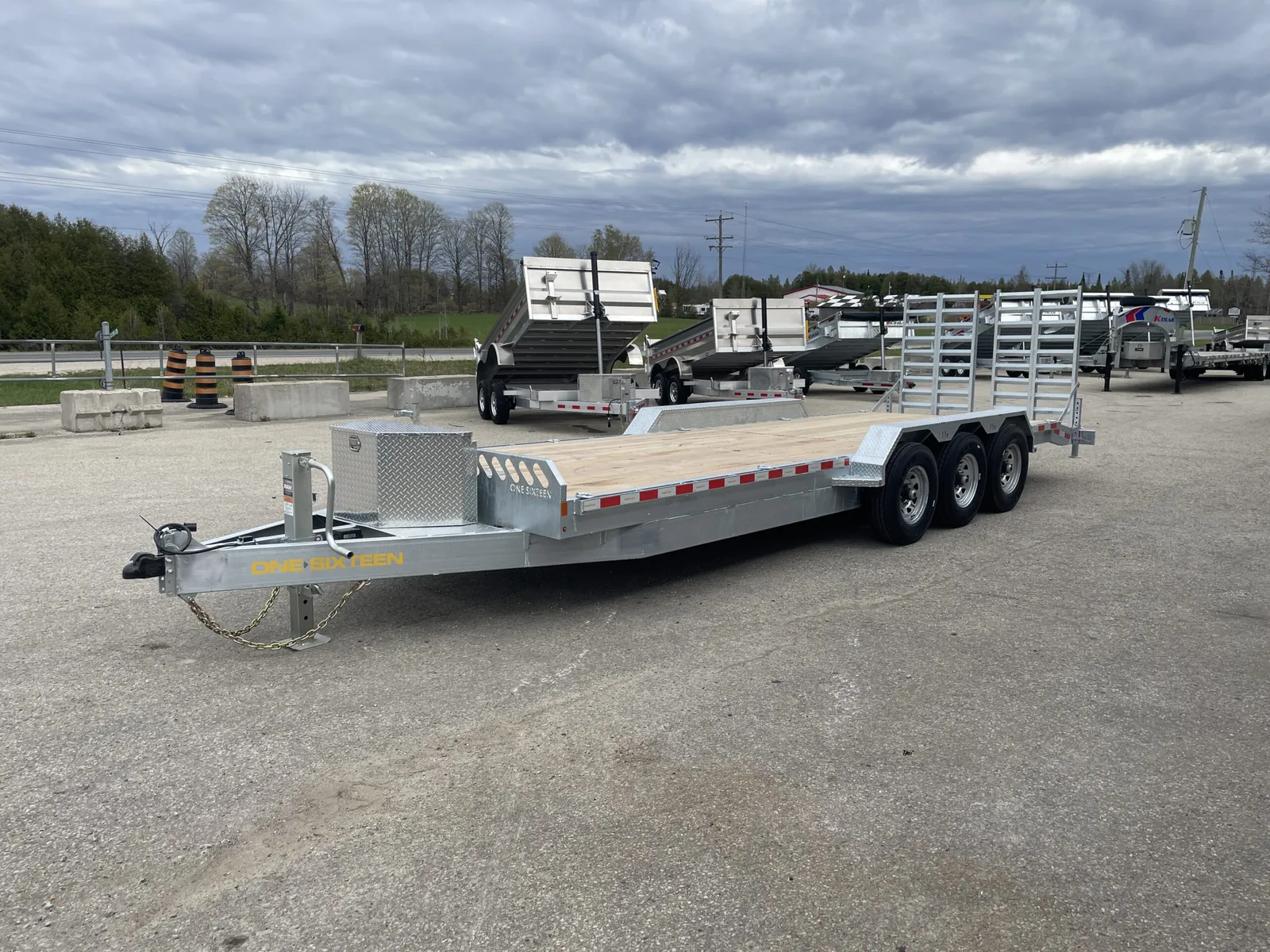

Galvanized tri-axle low profile equipment hauler with stand-up ramps and front toolbox

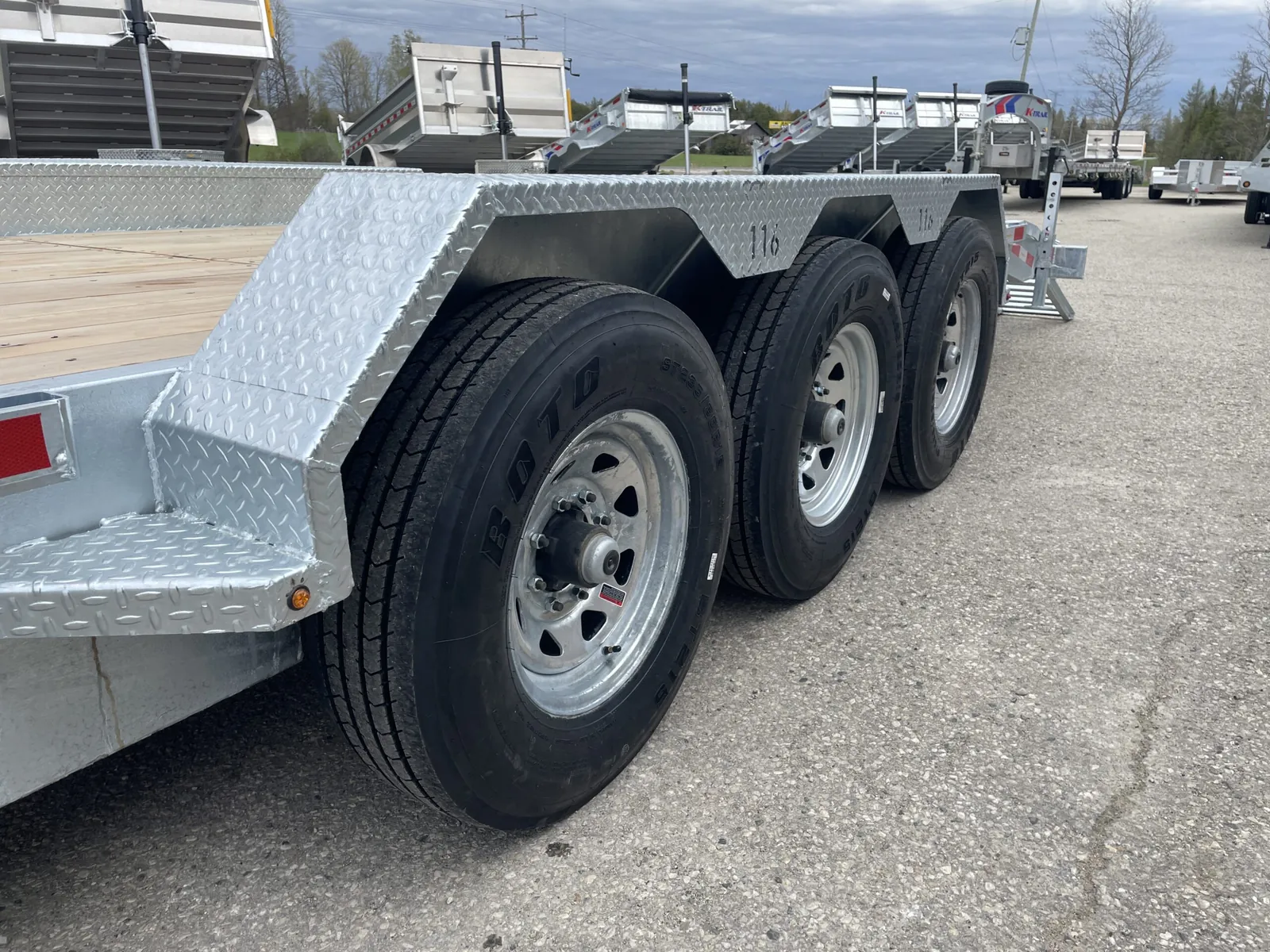

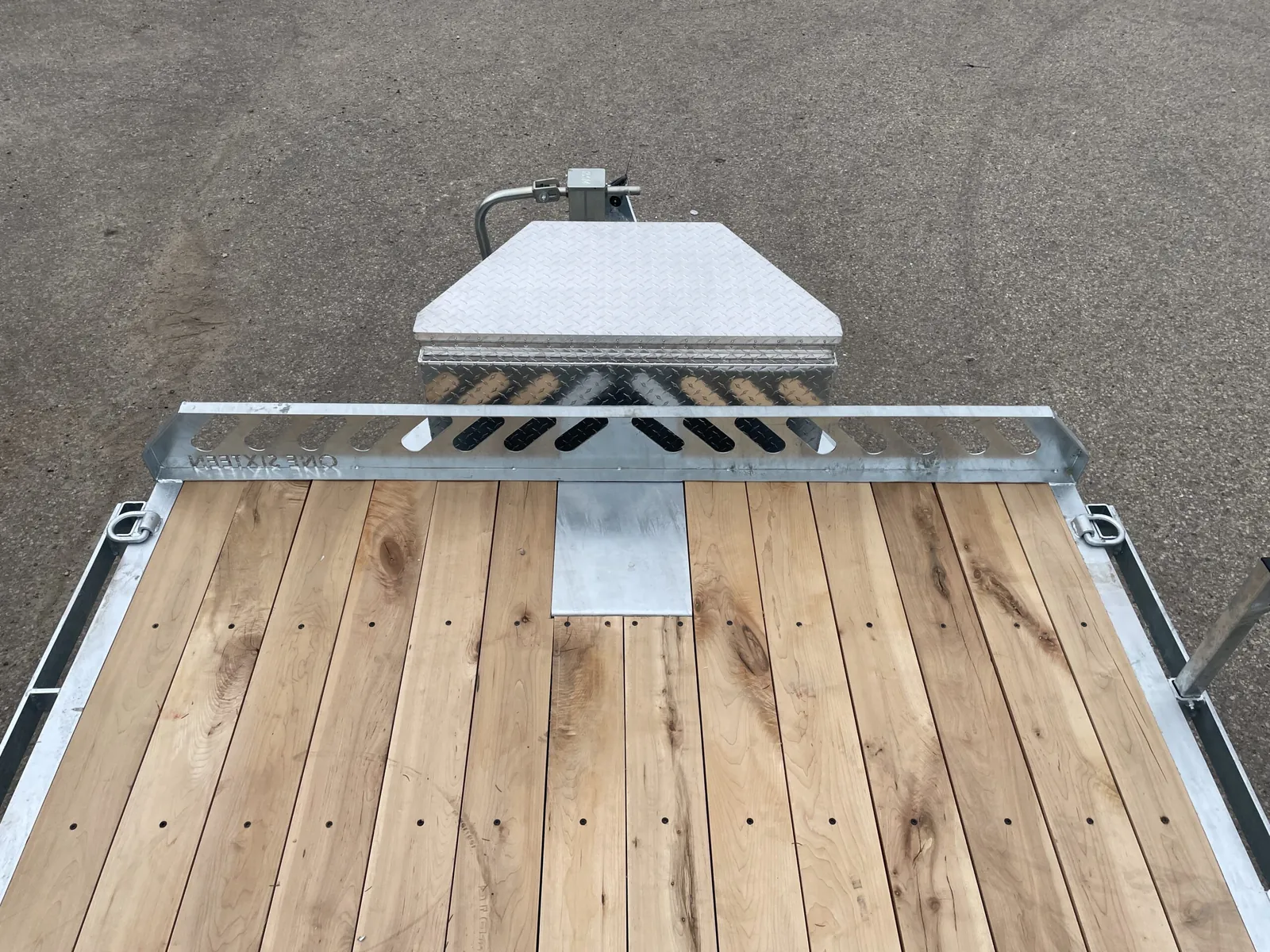

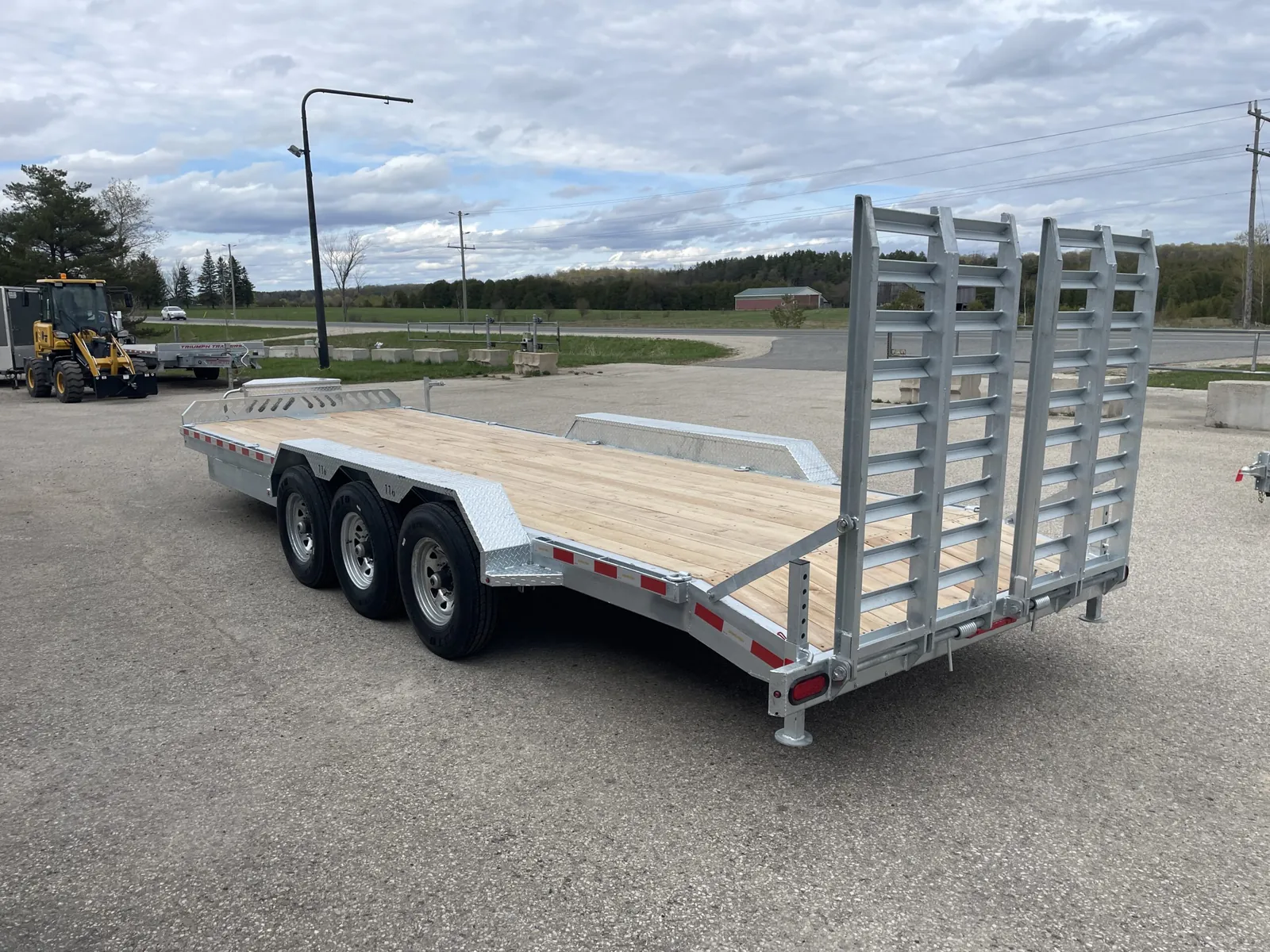

Tri-axle equipment hauler from the rear, ramps standing upThree galvanized 7K axles with checker plate fendersHardwood deck and front toolbox from above
10 Ton Tri-Axle Low Profile Equipment Hauler

10 Ton Tri-Axle Low Profile Equipment Hauler

Galvanized low profile equipment hauler on three 7K Dexter slipper spring axles (21,000 lb), built in Linwood Ontario at 82 inches wide with an 18 to 26 foot flat deck plus a 2 foot beavertail. Spring-assisted stand-up ramps with stabilizer legs, an 8 inch heavy channel frame with crossmembers on 16 inch centres, and a 30 year galvanized finish over a hardwood ash floor. Curb weights: 18' 2,004 kg · 20' 2,090 kg · 22' 2,162 kg · 24' 2,216 kg · 26' 2,286 kg.

Standard Features

  • 2' Beavertail w/ Stand-up 35" Ramps, Spring Assisted with Stabilizer Legs
  • 4 x 3" Channel 34" Wide x 60" Long Ramps with 1/4" Angle Traction Bars (Pair)
  • Slipper Spring Suspension
  • 3 - 7K Axles w/ Electric Brakes
  • 12K Jack
  • 21K 2-5/16" Adjustable Coupler or 3" Eye with 4 Bolts, with Safety Chains
  • Hardwood Ash Floor
  • Bolt-on Stake Pocket Spare Tire Mount
  • Stake Pockets & Rub Rail
  • 30 Year+ Galvanized Finish
  • 1pc Sealed Harness and LED Lights
  • 6 HD D-Rings: Front, Middle, Rear
  • 108" HD 12 Gauge Checker Plate Fenders
  • 8" Heavy Channel Frame & Tongue with Channel Crossmembers on 16" OC

Options

Part #Name
Optional Axles & Tires
EQ-TRI-8K-UGTri-Axle 8K Axle Upgrade (24K, 82" Wide, 16" Rubber)
EQ-SPARE-16-21KSpare Tire 235/80R16 LRG (21K Tri-Axle)
EQ-ALUM-WHEEL-TRIAluminum Wheel Upgrade (Tri-Axle)
EQ-SPARE-17-5-20KSpare Tire 215/75R17.5 (20K Tandem)
EQ-SPARE-17-5-24KSpare Tire 235/75R17.5 (24K Tandem)
Optional Features
EQ-ALUM-TOOLBOXAluminum Toolbox (Equipment Hauler)
EQ-DEEZEE-TOOLBOXDEE ZEE Plastic Toolbox (Equipment Hauler)
EQ-DRING-STAKEStake Pocket D-Ring, Moveable (Equipment Hauler)
EQ-DRING-WELDExtra Weld-On D-Ring, Each (Equipment Hauler)
EQ-HYD-JACKHydraulic Jack (Equipment Hauler)
EQ-25K-2SPD-JACK25K 2-Speed Jack (Equipment Hauler)
EQ-HARDWOOD-RAMPSHardwood on Ramps (Equipment Hauler)
EQ-EXPMETAL-RAMPSHD Expanded Metal on Ramps (Equipment Hauler)

Available Options

18' + 2' Beavertail — 82" Wide, 21K Tri-Axle
SKU: 6050-BT8220-21KTR
Login for pricing
20' + 2' Beavertail — 82" Wide, 21K Tri-Axle
SKU: 6051-BT8222-21KTR
Login for pricing
22' + 2' Beavertail — 82" Wide, 21K Tri-Axle
SKU: 6052-BT8224-21KTR
Login for pricing
24' + 2' Beavertail — 82" Wide, 21K Tri-Axle
SKU: 6053-BT8226-21KTR
Login for pricing
26' + 2' Beavertail — 82" Wide, 21K Tri-Axle
SKU: 6054-BT8228-21KTR
Login for pricing
Login to Order
