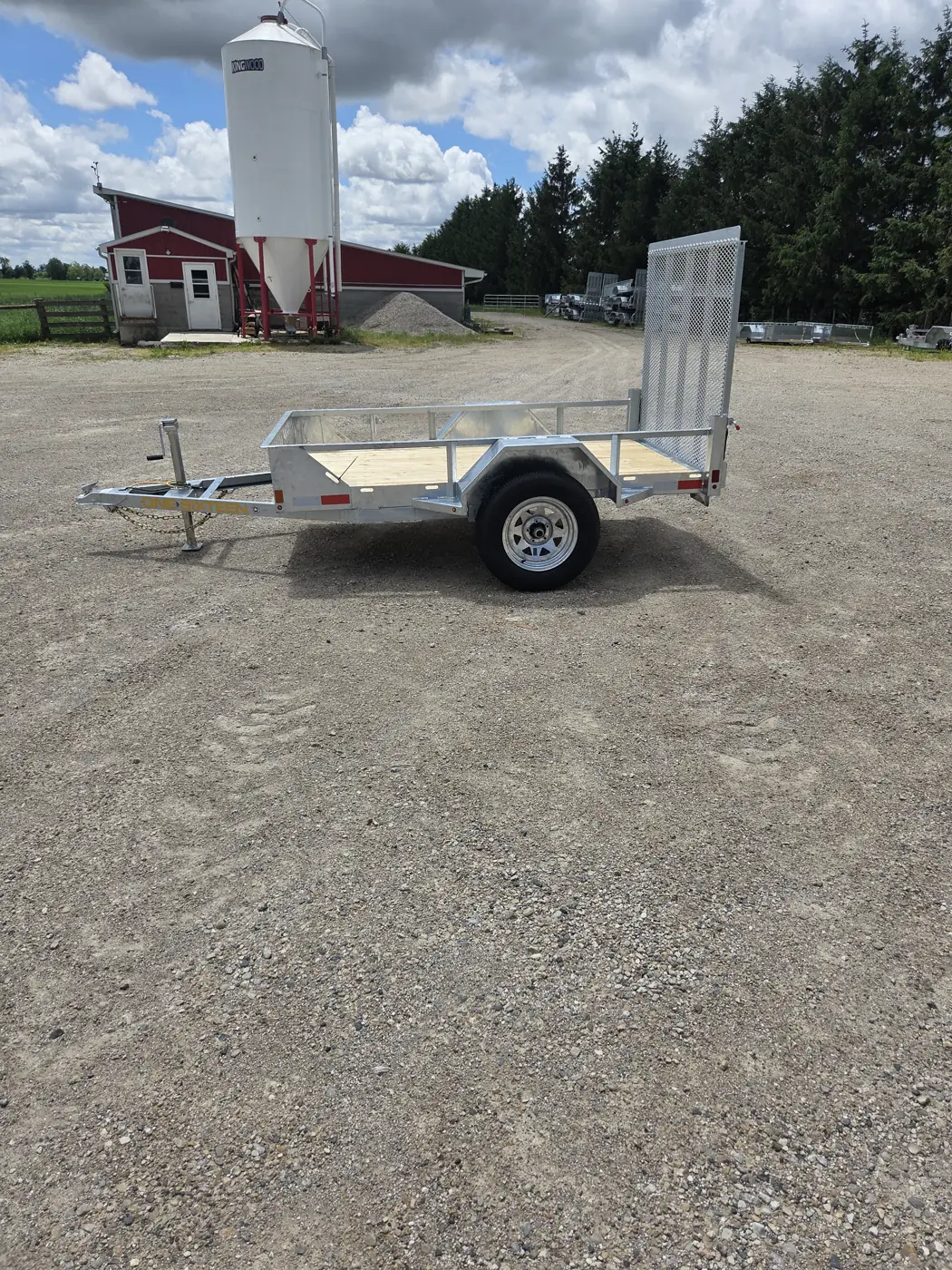

Single Axle Open Rail utility trailer with loading ramp

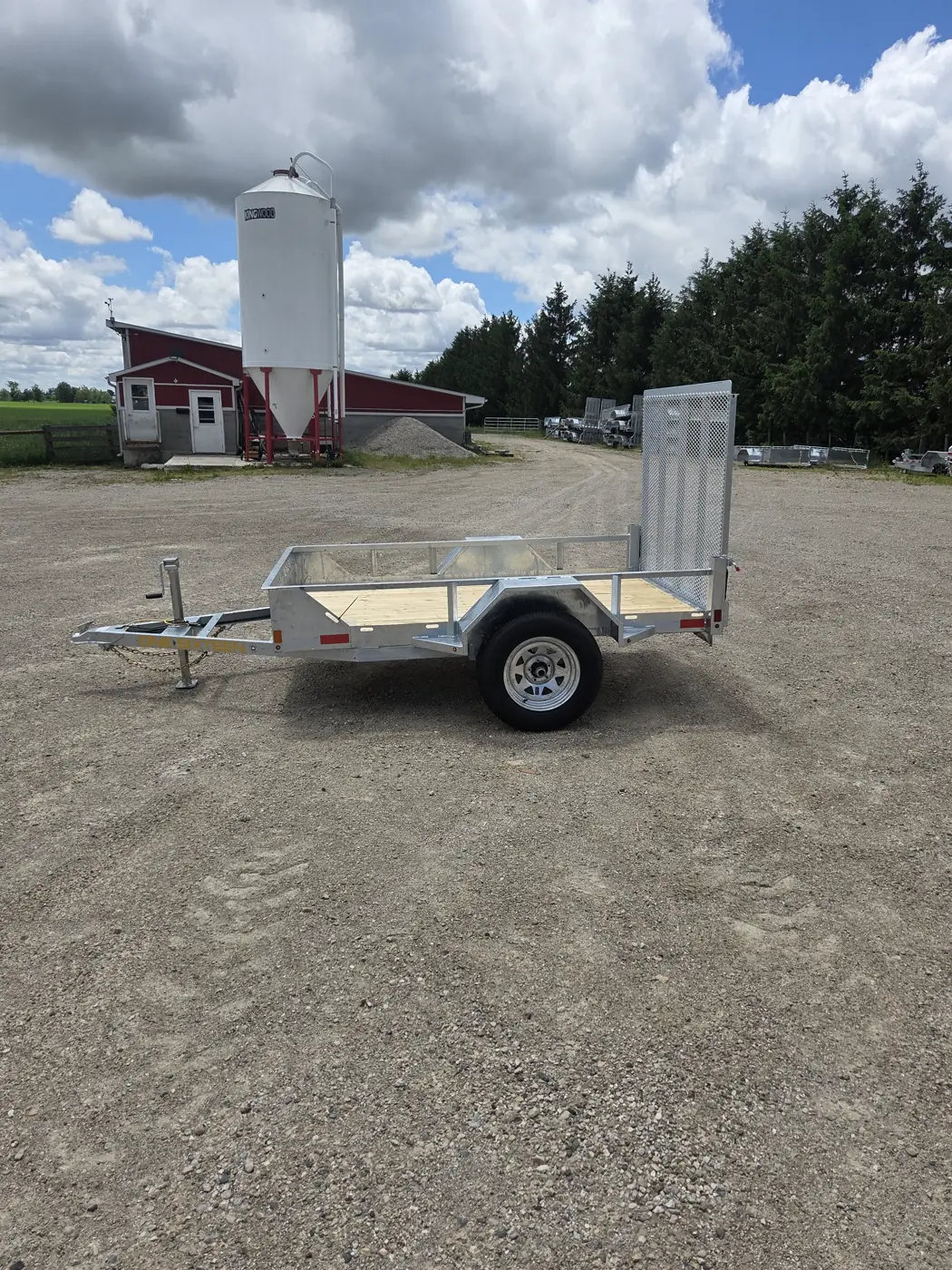

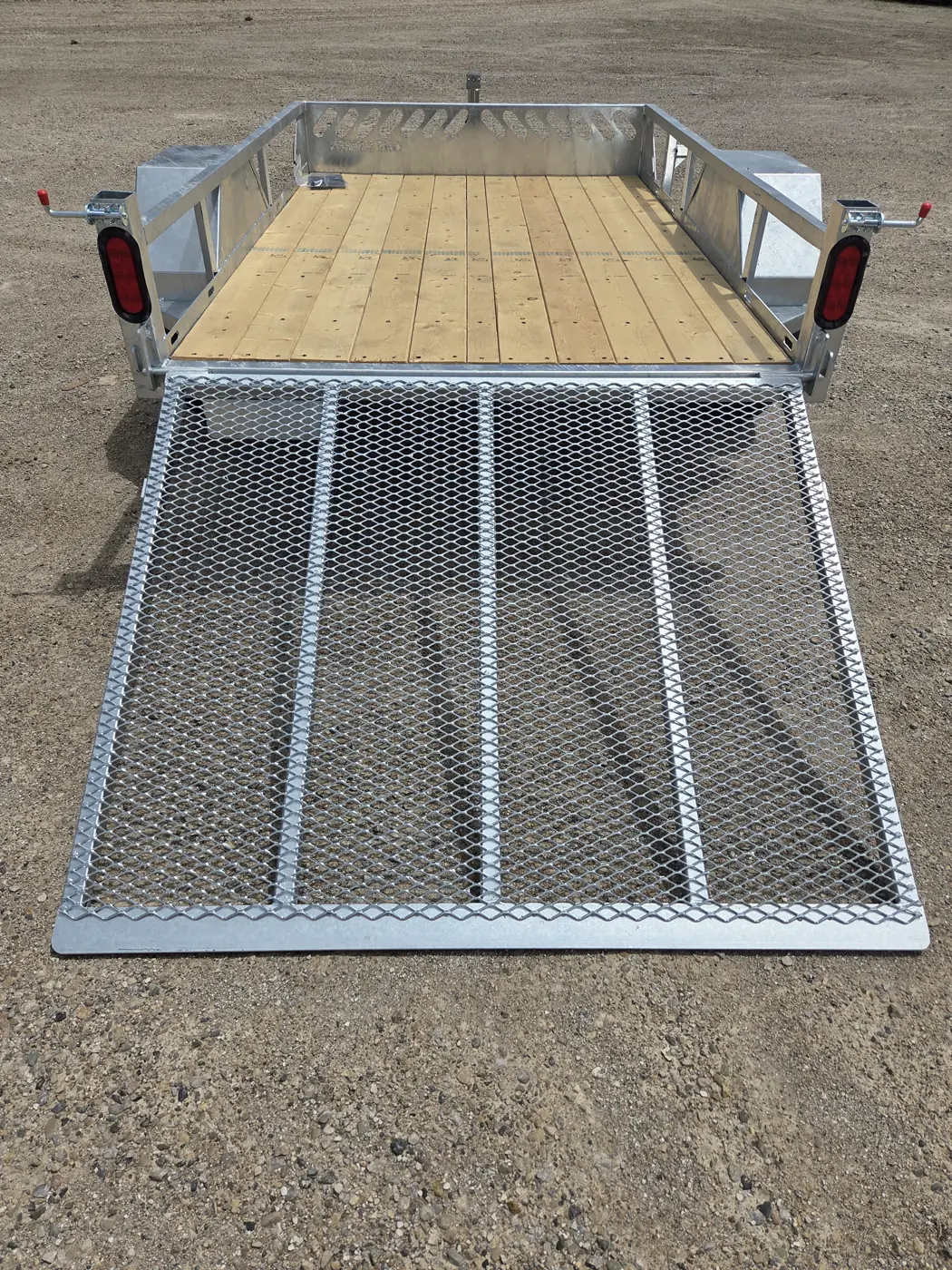

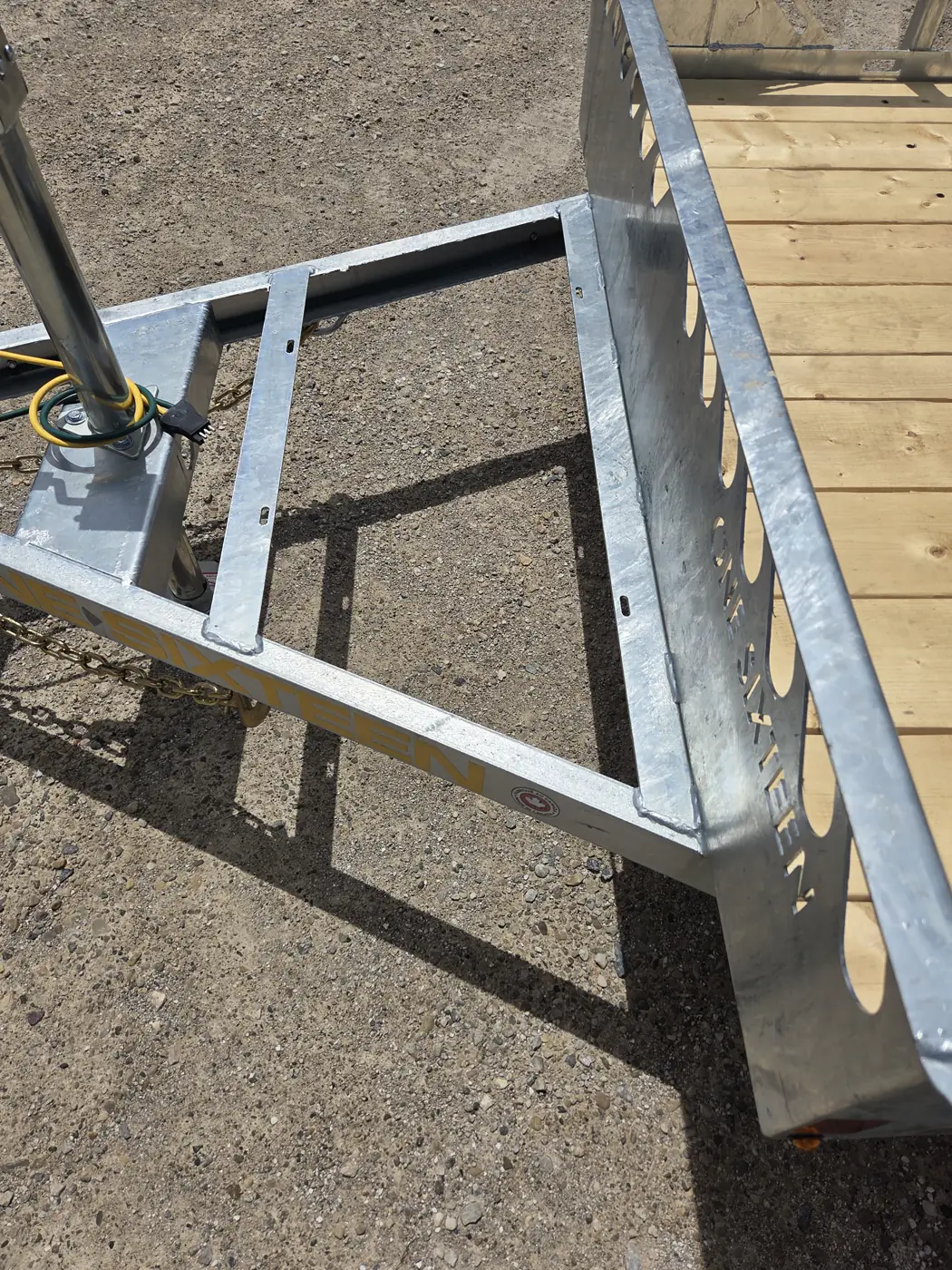

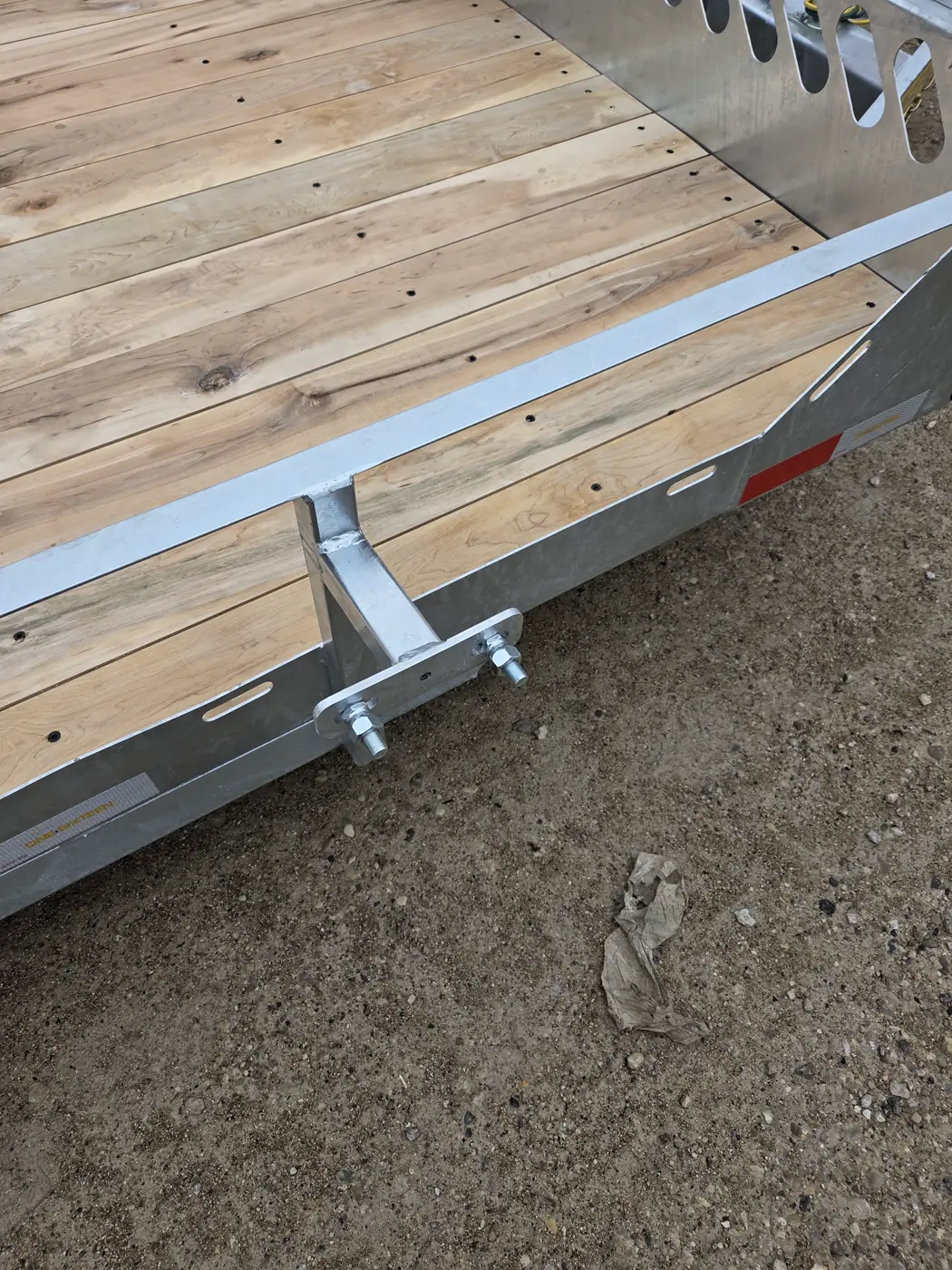

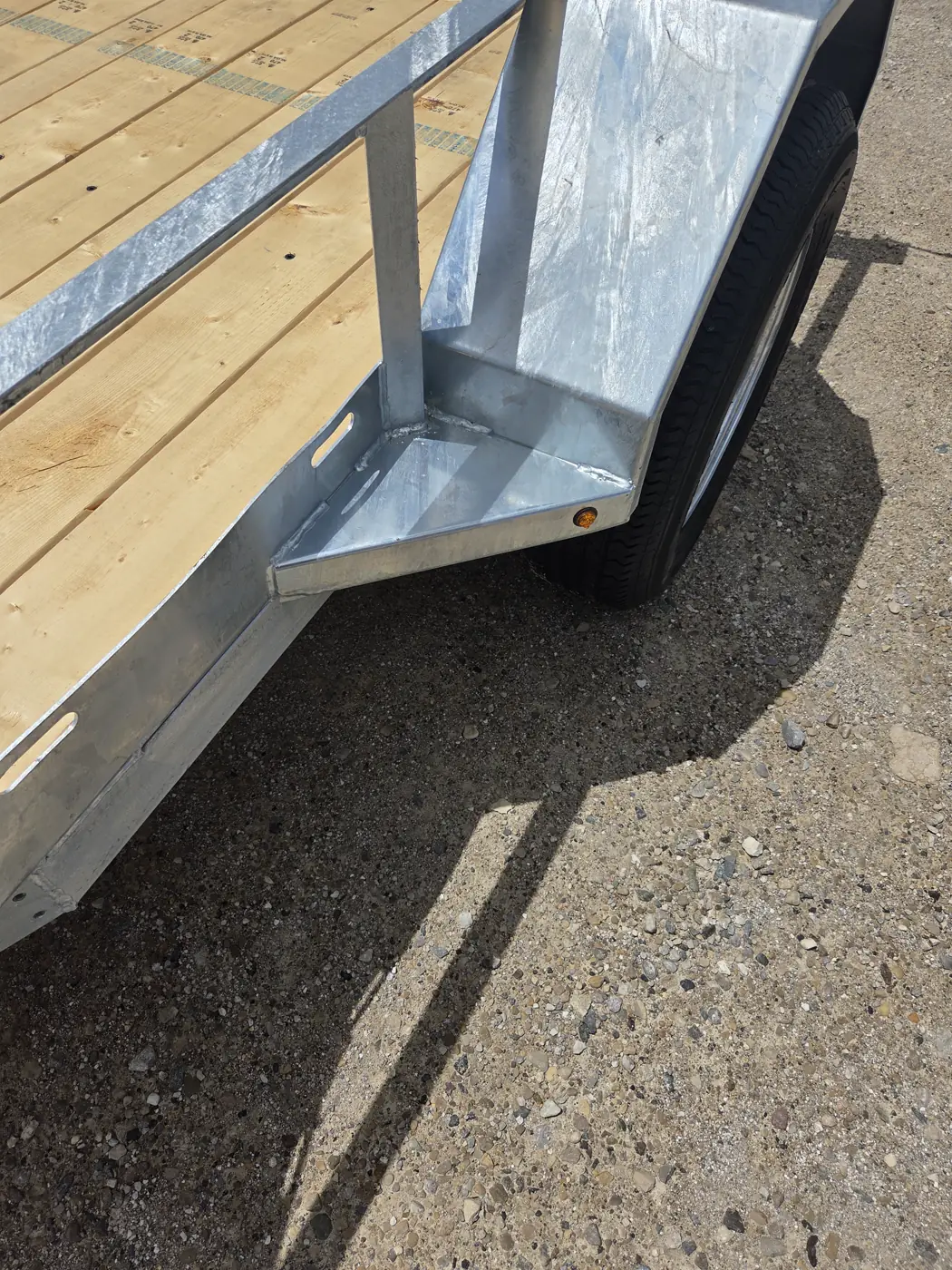

Single Axle Open Rail utility trailer side profileSingle Axle Open Rail rear loading ramp and wood deckSingle Axle Open Rail galvanized fender and side railSingle Axle Open Rail tongue and front rail detailSingle Axle Open Rail wood deck and tie-down detail
Single Axle Open Rail

Single Axle Open Rail

A lightweight open-rail utility trailer introduced in May 2026, available in nine sizes and powder-coated or galvanized finishes. Curb weights — 5x8: 800 lb; 5x10: 845 lb; 5x12: 900 lb; 5x14: 954 lb; 6x10: 950 lb; 6x12: 1,030 lb; 6x14: 1,115 lb; 7x12: 1,170 lb; 7x14: 1,286 lb.

Standard Features

  • 12" high angle sides with 24" on-centre frame
  • 3" tongue and 5×2 angle frame with tie-down holes
  • Wood floor with toolbox mounting holes
  • Lightweight 48-inch ramp on all widths
  • 3,500 lb straight axle with 5-bolt hubs and EZ-Lube spindle
  • Galvanized or powder-coated finish
  • Sealed wiring harness with LED lights
  • 205/75R15 LRC radial tires on 5-bolt galvanized wheels
  • Spare tire mount
  • One 3,500 lb non-braking axle
  • 2,000 lb A-frame setback jack
  • 2" A-frame coupler with safety chains

Options

Part #Name
BT-FSROpen Rail Front Side Bi-Fold Ramp
BT-RROpen Rail 12×60 Removable Ramps
BT-BIFOpen Rail Rear Bi-Fold Ramp
BT-ALBOpen Rail Aluminum Toolbox

Available Sizes & Finishes

Finish
5×8 — PaintedSKU: 1101-BT608UOR
